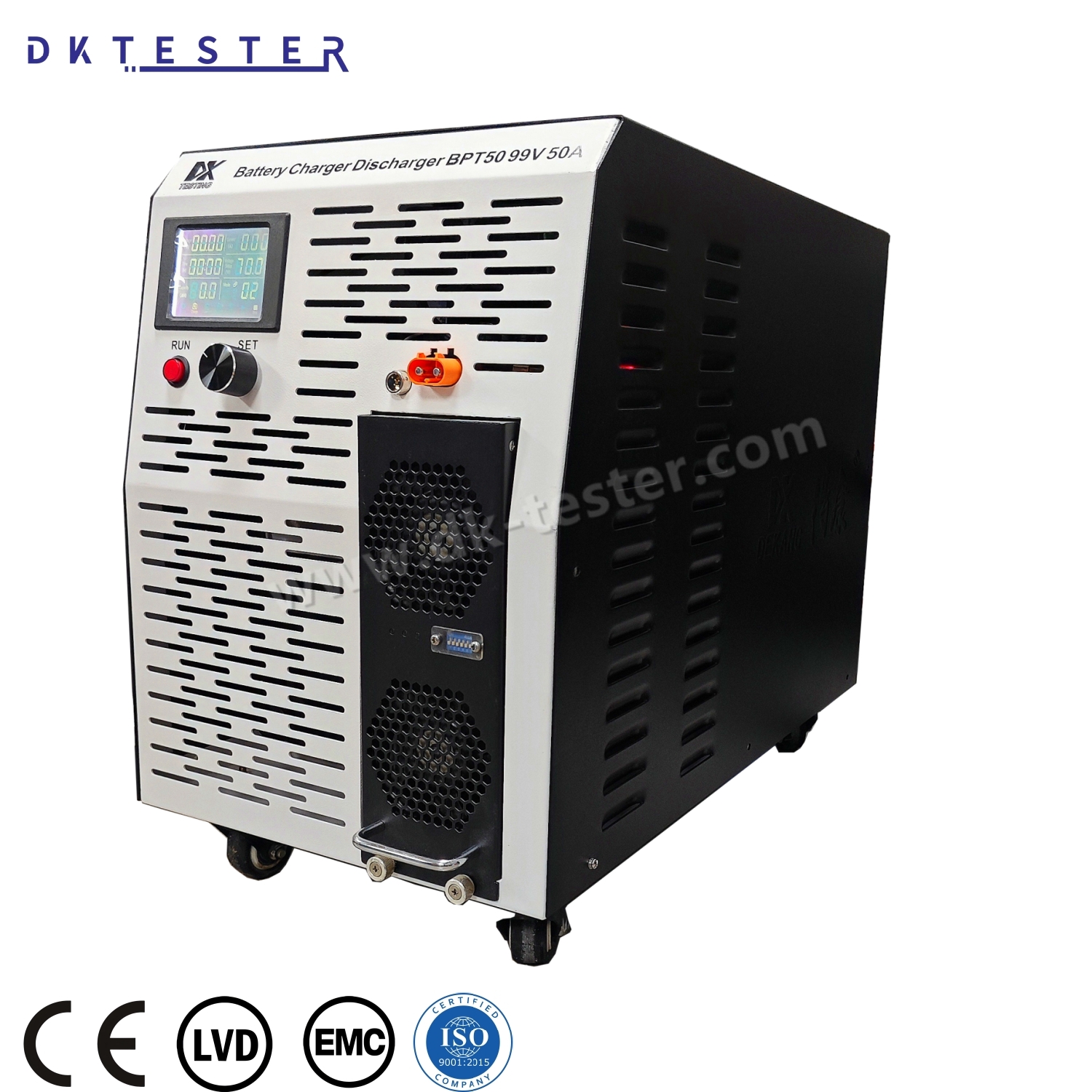

99V 50A Lithium/Lead-acid Batteries Charge Discahrge Performance Tester BPT50

The BPT50 lithium/lead-acid battery charge and discharge integrated machine is an advanced, programmable device designed for evaluating battery performance. It integrates multiple functionalities, including high-precision capacity series discharge testing, high-precision series charging testing, and a comprehensive battery temperature monitoring system. The machine features a broad voltage testing range of 9V to 99V, enabling it to test various batteries within the range of 12V to 84V. The discharge current can be adjusted from 1A to 50A, while the charging current can be regulated between 1A and 50A. This versatile equipment is suitable for assessing the charging performance and capacity of lead-acid batteries, lithium batteries, and other battery types. With a maximum of 16 charge and discharge cycles, it also serves as an effective aging device in battery manufacturing processes.

The device supports two operational modes: Panel and Software. Upon installation of the designated software, the device can be managed and operated via a computer for various functions, including charge-discharge configuration, data sampling, test report import/export, analysis of test data, and generation of charge-discharge curves. Additionally, a single computer can simultaneously manage multiple devices through a network switch. Online testing caters to more advanced testing requirements.
The intelligent battery temperature monitoring system is capable of continuously monitoring the real-time temperature of the battery, controlling the switching of operational steps, and charging stop. Offering dependable support for safety testing.

This is a high-precision instrument specifically designed for electric vehicle and battery manufacturers, as well as their dealers, to evaluate the performance of battery packs. It can be widely applied in battery testing and maintenance, production, sales, after-sales service, and laboratory research and development, serving as an efficient and intelligent tool for battery testing and maintenance.

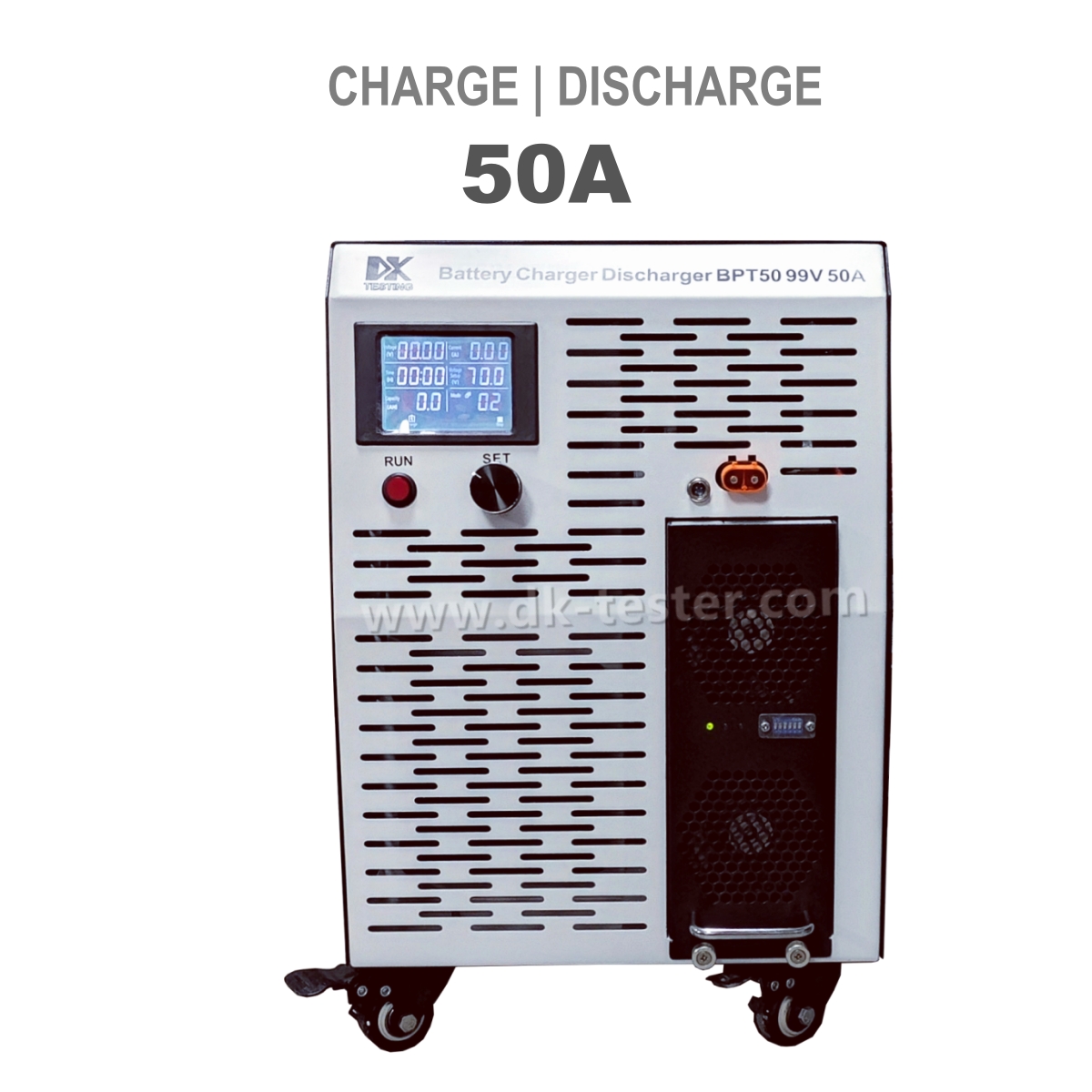

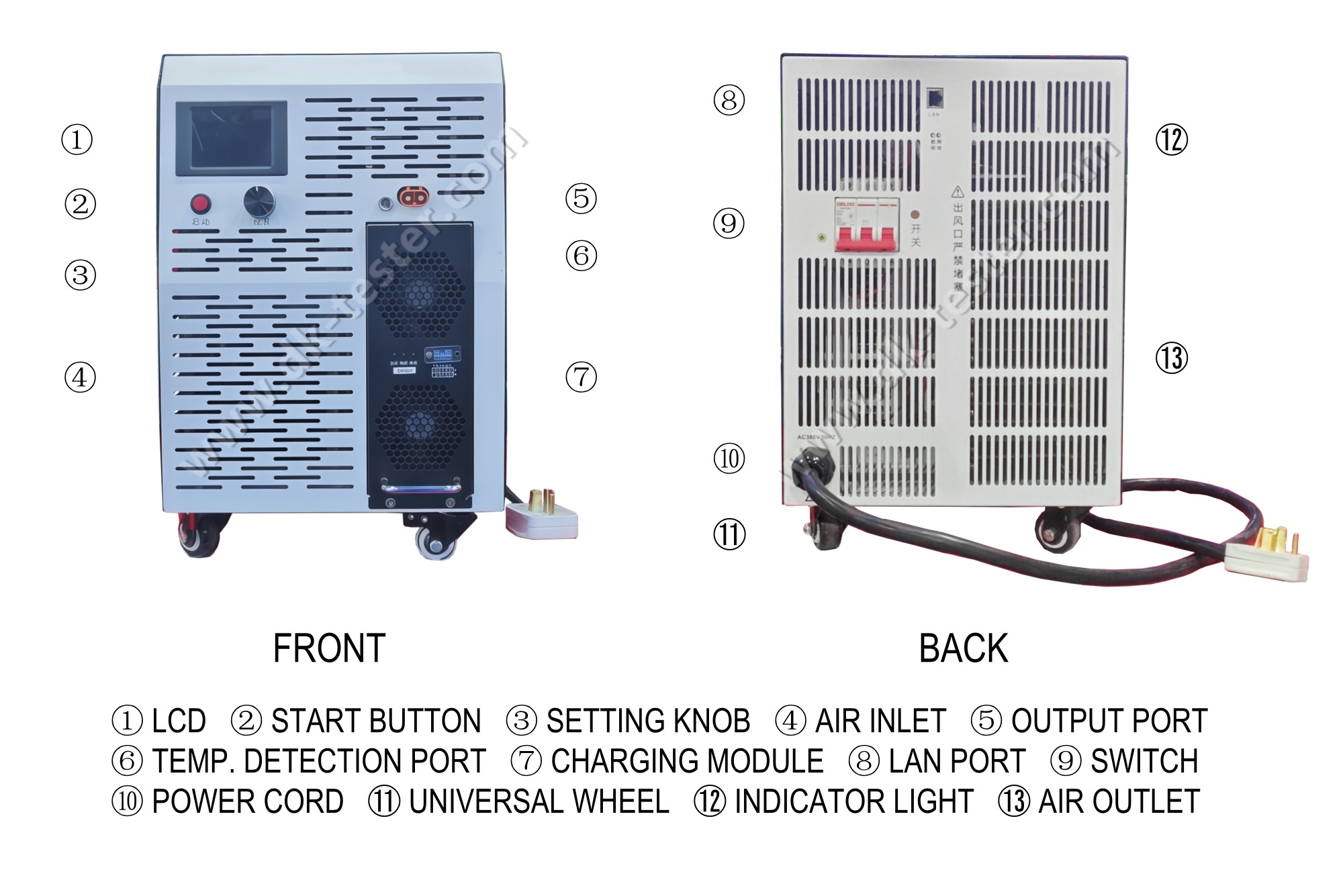

►The Instrument uses a high-definition LCD screen display, each index is clear at a glance.
►The parameter setup and parameter switching are set and switched by a "START" switch and a "SET" knob. All parameters (voltage, current, mode) settings have the saving function.
►Intelligent speed fan can run continuously, delay the power-off of the fan, and blow off the remaining heat.
►Multiple protection functions, such as reverse connection protection, over-voltage and over-current protection, over-temperature protection, etc.
►The work steps can automatically switch according to the set parameters and have automatic cycle charge and discharge function
►Data protection startup: If the connection cables disconnect from the battery during the charging and discharging, after reconnecting the cables with the battery, press and hold the "Start" button to continue working.
►Power off data protection function. When a power failure occurs during the test, the test data before the power failure is retained. After the power is restored, the test can continue.
►Modular design, easy maintenance and replacement of accessories.

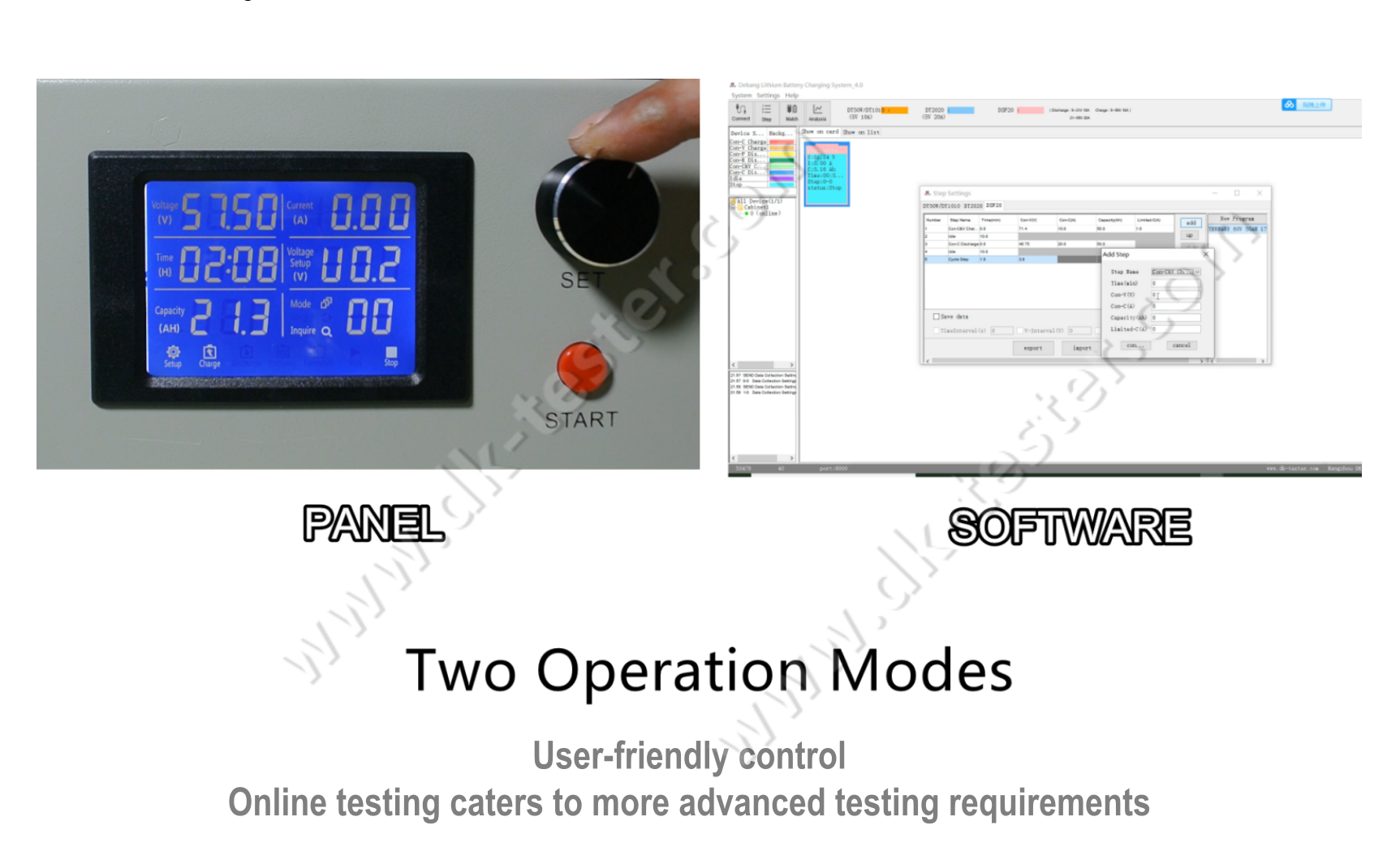

►Two operation methods: Panel & Software. After installing the specified software, the device can be managed and operated through the computer: charge-discharge setting, data sampling, test report imports and exports, test data analysis, charge-discharge curves drawing.

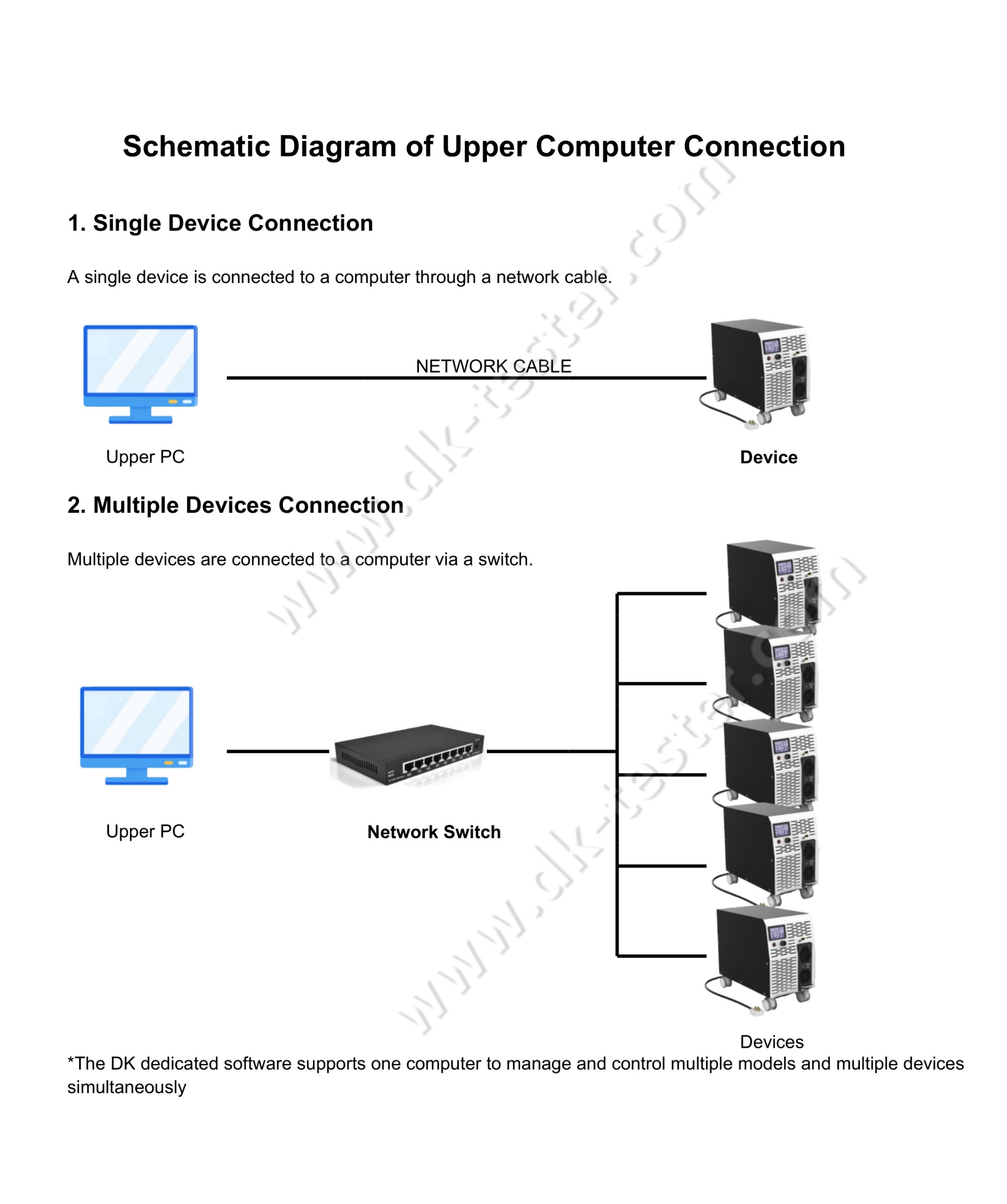

►One computer can manage multiple devices simultaneously through a switch, making testing more efficient and simpler.

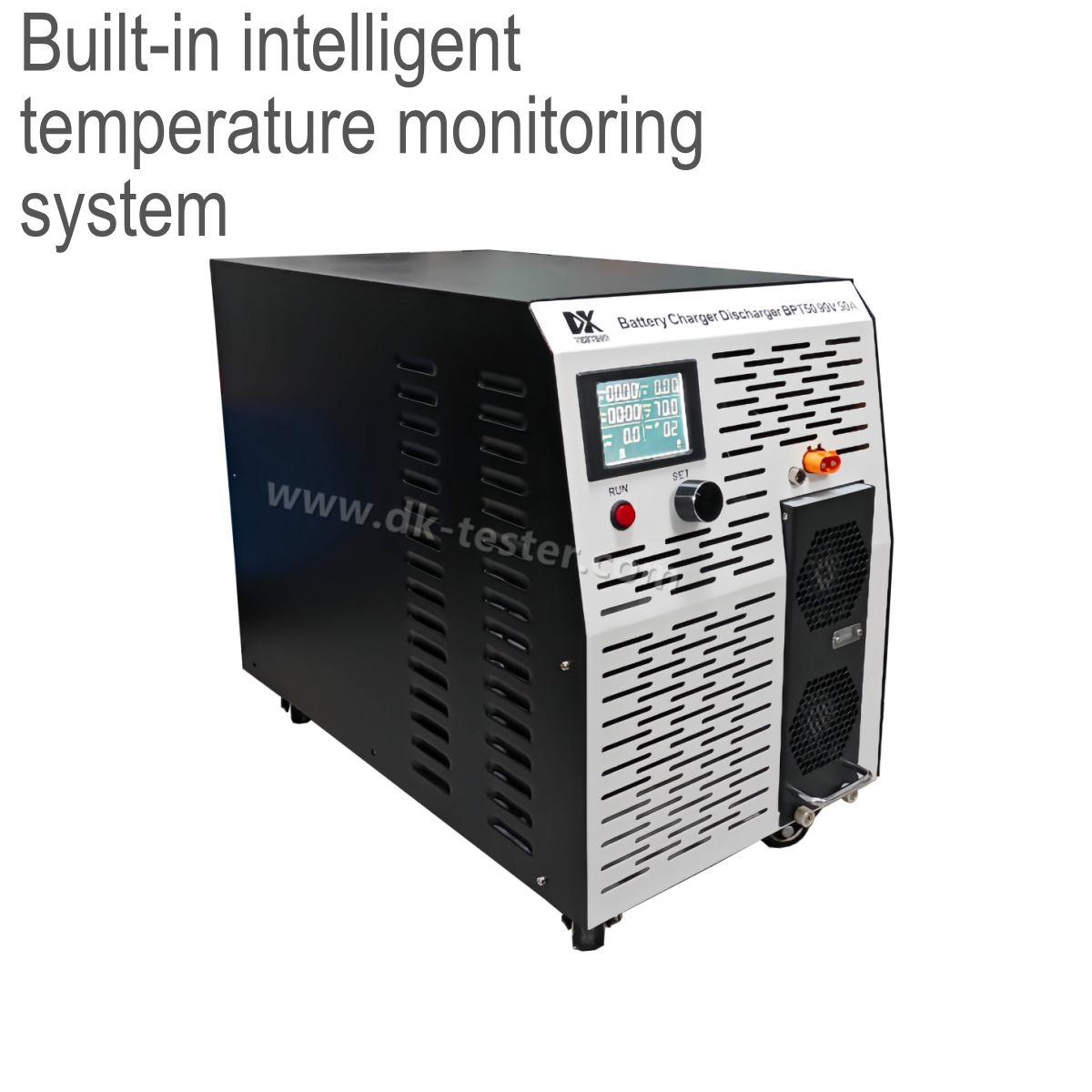

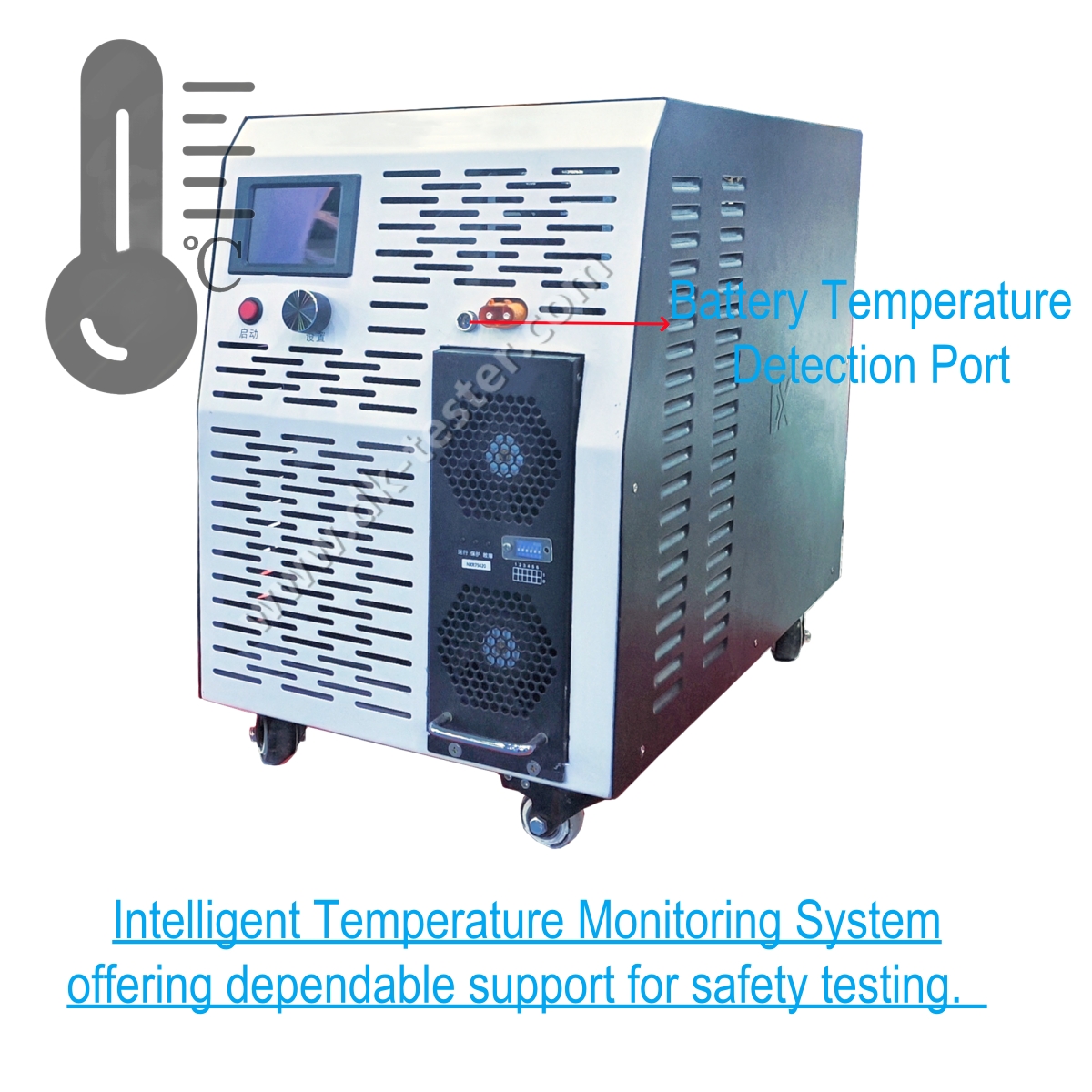

►Intelligent battery temperature monitoring system monitors the real-time temperature of the battery at any time, testing and maintenance are safer and easier.

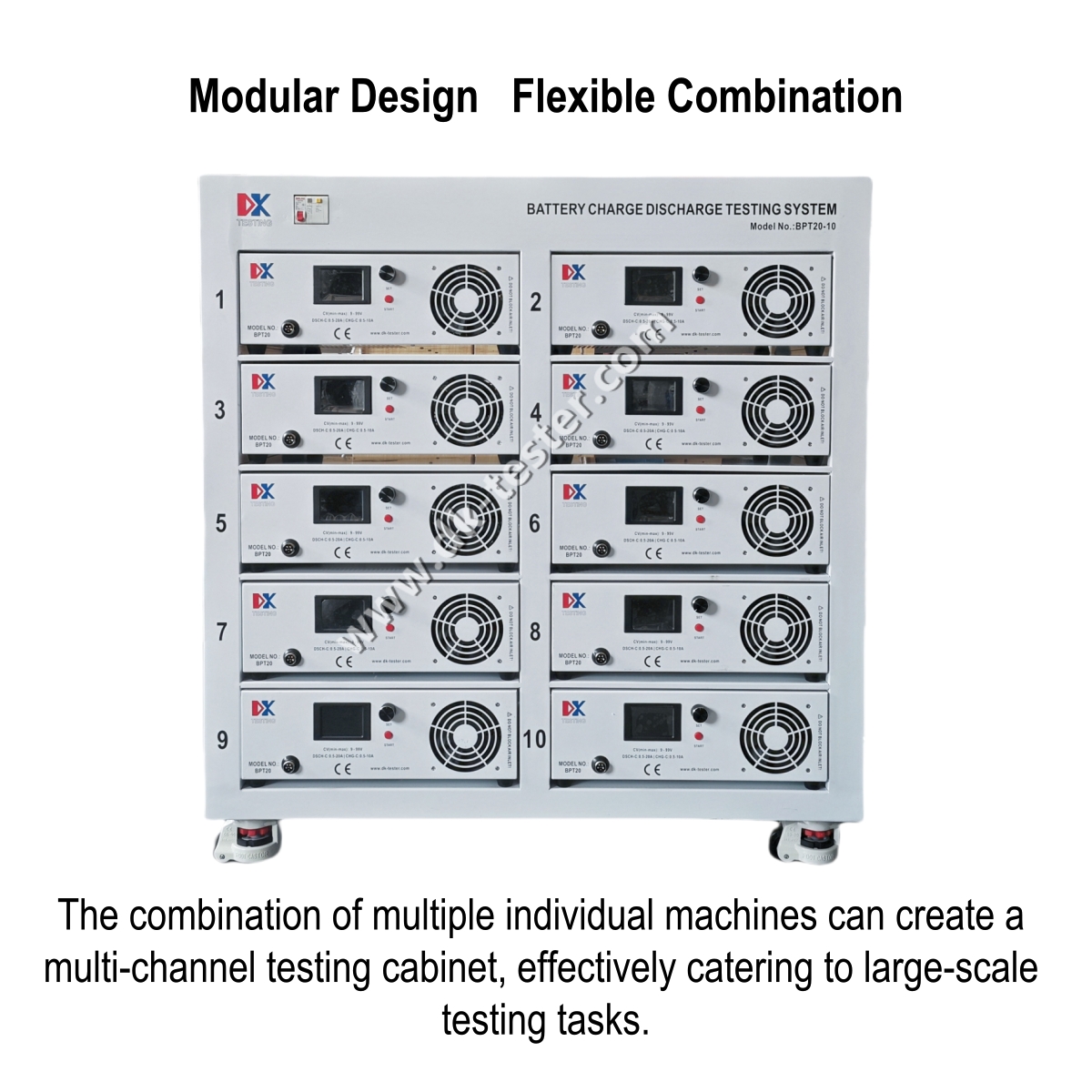

Modular design simplifies after-sales maintenance by allowing easy module replacement. Multiple single machines can be combined to form a multi-channel testing cabinet for large-scale detection needs.



Description: Storage Battery Series Charge-Discharge Testing Instrument
Model No.: BPT50

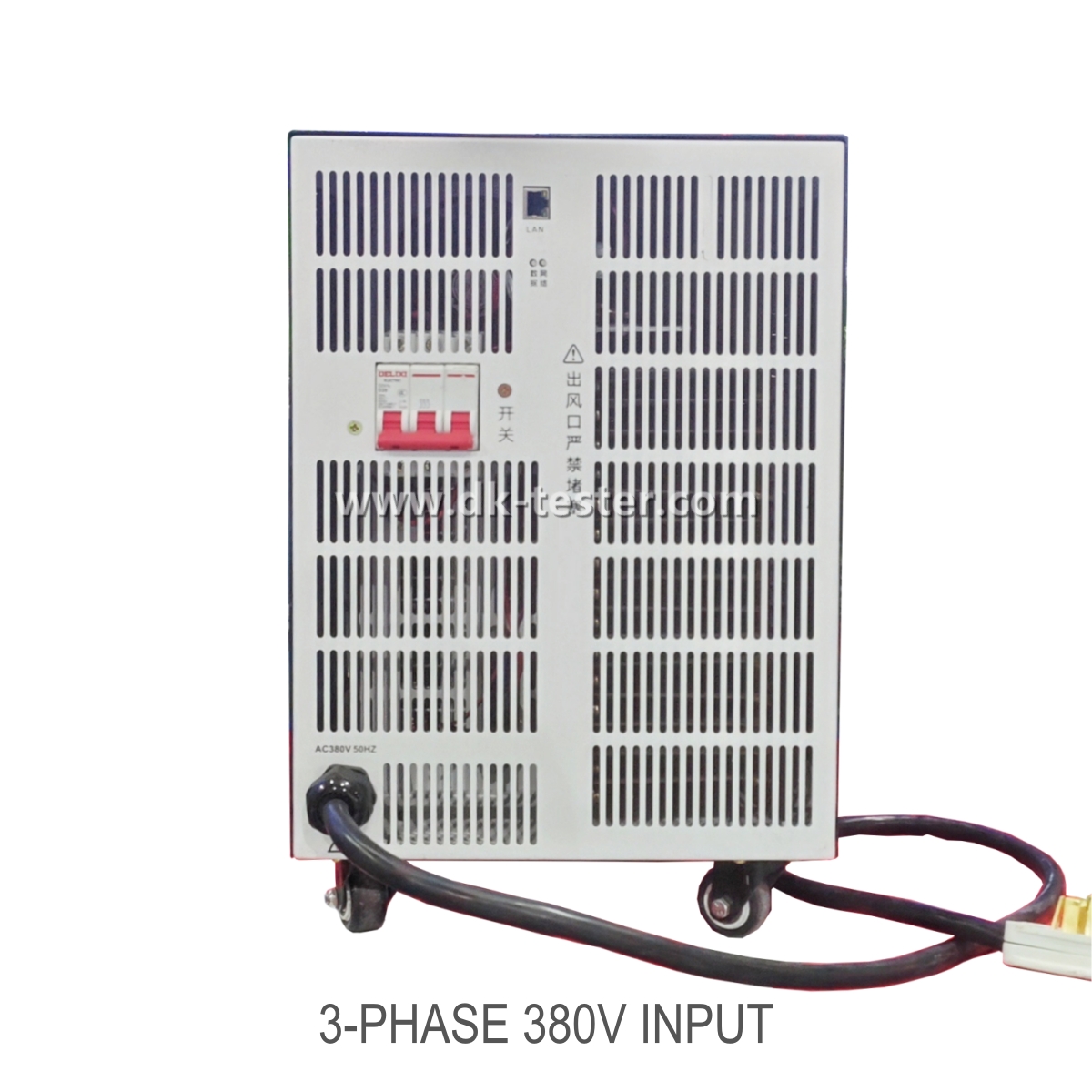

Input Voltage:		3-Phase 260V-475V 50Hz/60Hz
Input Power:		Full loading: 5000W， No Loading: 13W

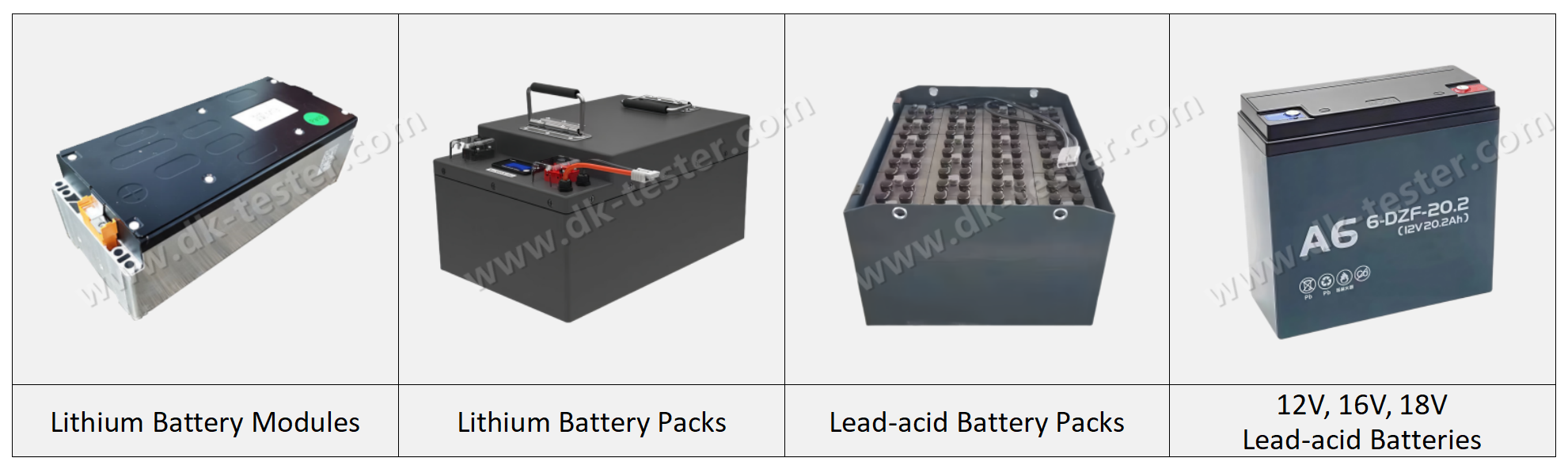

Applicable Batteries:		Lithium-ion and lead-acid battery pack
Basic Functions:		Charge
		Discharge
		Auto cycle charge and discharge
		DC internal resistance test
		Data analysis and comparison
Voltage	Charge Constant Voltage Range:	9V-99V, 0.1V stepping
	Discharge Cut-off Voltage Range:	9V-99V, 0.1V stepping
	Tolerance:	<0.03V
Current	Charge Current:	1 – 50 A adjustable
	Charge Cut-off Current:	0.1 – 10 A adjustable
	Discharge Current:	1-50A adjustable
	Tolerance:	<0.03A
Data Recording	Data Recording Conditions	Time interval
		Voltage interval
		Current interval
Charge	Charge Modes:	Constant current & constant voltage charge
	Charge Cut-off Conditions:	Voltage, current, time, capacity, temp, temp rising rate
Discharge	Discharge Modes:	Constant current discharge
	Discharge Cut-off Conditions:	Voltage, time, capacity
Battery Temperature Controlling and Monitoring	Temperature Controlling and Alarm:	When the battery temperature reaches the set temperature value in charging, the charge is stopped and the software will alarm by pop-up window and the device will emit a buzzer alarm.
	Temperature Monitoring Range:	-10-100℃
Cycle	Cycle Index:	1-16times
Protection	Power-down protection
	Reverse connection
	Over-temperature protection
	Over-voltage protection
	Short-circuit protection
IP Grade		IP20
Channel Control Mode		Independent control
High Voltage Insulation Between Channels		AC1000V/2min Normal
Voltage & Current Test Sampling		Four-core wires connection
Noise		< 76 dB
Host Computer Communication Method		based on TCP/IP protocol
Test Report Output Method		Excel
Server Disk Configuration		>200MB
Server Operation System		Windows XP or later has network port configuration
Communication Port		LAN
Operation Methods		Panel/Software
Equipment Work Ambient Conditions
Operation Ambient Temperature		0 ℃ - 40 ℃
Storage Temperature		-10 ℃ - 50 ℃
Operation Ambient Humidity		≤ 70 % RH (No condensation)
Storage Ambient Humidity		≤ 80 % RH (No condensation)

Model No.:                   BPT50
Product Size(L*W*H)：  30*53*44 CM
Pcs/Ctn:                          1 PC / CTN
Package Size(L*W*H):    41*56*53 CM
G.W.:                                38 KG
N.W.:                                20 KG




LCD Interface


Software Interface
