20V 10A Battery Module/Pack Charge Discharge Tester DSF2010

20V 10A Battery Module/Pack Charge Discharge Tester DSF2010

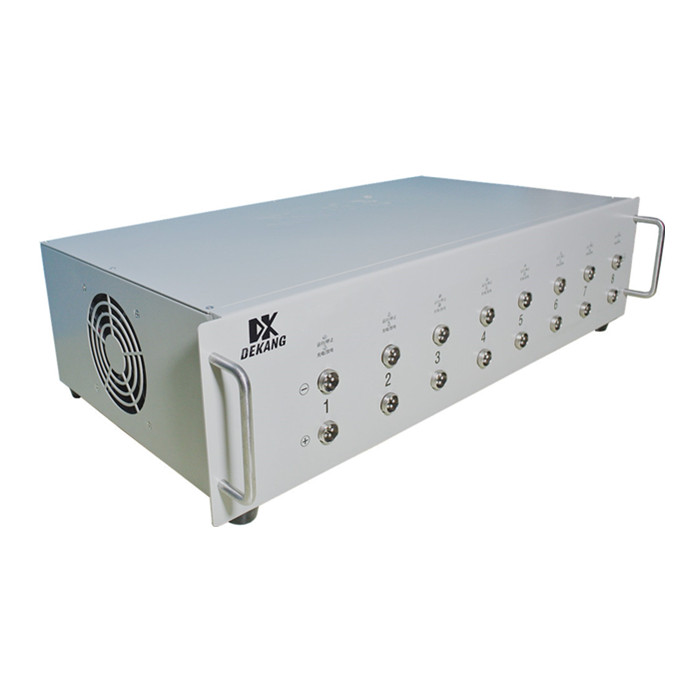

Name: 20V 10A Battery Module/Pack Charge Discharge Tester DSF2010
Brand: Battery Tester Manufacturer
SKU: DSF2010
Availability: InStock
Rating: 5 (1 reviews)

Item No.: DSF2010

Input Power: AC200V～245V50/60HZ
Applicable Batteries: Lead-acid/Li-ion / Polymer / NiMH / NiCd batteries
Con-Voltage Range: 5V-20V
Current Output: 0.5A-10A
Operation Method: Online
Communication Port: LAN
Channel No.: 8 channels

INQUIRY PDF Format

Description

DSF2010 is suitable for capacity testing, charge and discharge characteristic testing, capacity grading and matching, balance charge and discharge maintenance, internal resistance testing of various batteries of Lead-acid, Lithium-ion, Polymer, Nickel-Metal Hydride, and Nickel-Chromium. DSF2010 isolation detection technology can determine the location of the defective modules without disassembling the battery pack, then replace it. It can balance charge and discharge the unbalanced battery pack to balance the battery and restore the battery pack to normal balance.

The device is integrated with Battery Temperature Monitoring System, work step switching and charging stop can be realized by setting the temperature to ensure accurate and safe battery testing & maintenance with unattended.

It’s applicable for battery performance testing, maintenance, regeneration, pack assembling, pack rebuilding, etc.

A number of DSF2010 can constitute a testing cabinet to match the needs of mass detection and can complete the one-go testing and charge-discharge maintenance for the entire battery pack. Dedicated software can complete the battery matching test and analyze the test data. The device can accurately determine the location of the faulty modules in the battery pack, so as to achieve efficient repair of the battery.

DSF2010

DTSF2010-40

Applicable Batteries:
Lead-acid/Li-Ion/polymer/Ni-MH/Ni-Cd Batteries, etc.

Features:
• Each channel is equipped with a dedicated processor to ensure a perfect level of capacity calculation, timing, voltage and current control.
• All channel is under isolated test, it can directly test the cells of battery pack.
• Independent heat source channel, temperature control and speed regulation fan.
• The LED light indicates the running status, testing status, matching status, alarm status.
• Fully compatibility with the batteries of Lead-acid, Li-ion, Polymer, Ni-MH, NiCd, and so on.
• Online test between computer and device, the setting and result is particular and plentiful,
• With the work steps of Constant Current Discharge, Constant Power Discharge, Constant Resistance Discharge, Constant Current Charge, Constant Voltage Charge, Constant Current & Voltage Charge, Internal Resistance Test and Idle, etc.
• Work step automatically switching.
• The charge and discharge parameters can be customized.
• The matching can be processed, the test results can be matched according to the customized standard, and it can mark and display on the device.
• Battery anti-reverse connection protection and alarm.
• The recording function of the test process.
• With 3 Y-axis (voltage, current, capacity) and a time axis curve drawing ability, and data report function.
• The color of the test status bar is customized, which makes it easy to check the test status of all devices when the number of tests is large.
• Isolation channel battery temperature monitoring system, work step switching and charging stop can be realized by setting the temperature to ensure accurate and safe battery testing & maintenance with unattended.

Technical Specification:

Model No.: DTSF2010
Input Voltage:		AC 220V± 10% 50Hz/60Hz
Input Power:		No-load 100W, full load 1920W
Voltage	Charge Constant Voltage Range:	5 V – 20 V adjustable
	Discharge Cut-off Voltage Range:	5 V – 20 V adjustable
	Tolerance:	± 0.02 V
Current	Charge Current:	0.05 A – 10 A Adjustable
	Discharge Current:	0.05 A – 10 A Adjustable
	Charge Cut-off Current:	0.05A – 5 A
	Tolerance:	± 0.02 A
Power	Max. Output Power (Single Channel)	230 W
Data Recording	Data Recording Conditions	Time interval
		Voltage interval
		Current interval
Charge	Charge Modes:	Constant current charge
		Constant voltage charge
		Constant current & voltage charge
	Charge Cut-off Conditions:	Voltage, Current, Time, Capacity, -△V, Temperature
Discharge	Discharge Modes:	Constant current discharge
		Constant power discharge
		Constant resistance discharge
	Discharge Cut-off Conditions:	Voltage, current, time, capacity
Cycle	Cycle Index:	1-9999times
Protection	Power-down protection
	Reverse connection
	Over-temperature protection
	Over-voltage protection
	Short-circuit protection
IP Grade		IP20
Channel Control Mode		Independent control
High Voltage Insulation Between Channels		AC1000V/2min Normal
Voltage & Current Test Sampling		Four-core wires connection
Noise		< 76 dB
Host Computer Communication Method		based on TCP/IP protocol
Test Report Output Method		Excel
Server Disk Configuration		>100GB
Server Operation System		Windows XP, Windows 7/8/10
Communication Port		LAN

Equipment Work Ambient Conditions
Operation Ambient Temperature		0 ℃ - 40 ℃
Storage Temperature		-10 ℃ - 50 ℃
Operation Ambient Humidity		≤ 70 % RH (No condensation)
Storage Ambient Humidity		≤ 80 % RH (No condensation)

Application Cases:

Illustrations:

Packing Information:
Produce Size： 67.5*340*17.9 cm(L*W*H)
Pcs/Ctn: 1 pc/ctn
Package Size: 77*46*27 cm(L*W*H)
G.W.: 26.00 kgs
N.W.: 24.00 kgs
