Hybrid Car HEV NiMH Battery Auto Cycle Charge and Discharge Capacity Tester Machine

Input Power: AC200V~245V50/60HZ
Applicable Batteries: Lead-acid/Li-ion / Polymer / NiMH / NiCd batteries
Con-Voltage Range: 5V-20V
Current Output: 0.5A-10A
Operation Method: Online
Communication Port: LAN
Channel No.: 8 channels
Description
DSF2010PRO is suitable for capacity testing, charging characteristic testing, capacity grading matching, balance maintenance of NiMH, NiCd, Li-ion and lead acid batteries. Accurately detect the actual performance status of the battery and provide detailed test data. DSF2010 isolated detection technology can determine the location of the defective battery without dismantling the battery pack. The device can perform balanced charge and discharge maintenance on the battery pack to restore the battery pack to a normal balance state. The device has a built-in intelligent battery temperature control system that monitors the battery temperature and controls charging to ensure the safety of the test.

A single PC can simultaneously manage multiple devices of various models of DK series device, which can be connected via a switch to form a multi-channel testing system to complete the testing and maintenance of the entire battery pack at once.

The equipment is widely used in the testing, maintenance and rebuilding of hybrid vehicle batteries and electric vehicle batteries. Particularly suitable for testing, maintaining and rebuilding Ni-MH batteries in hybrid vehicles such as Honda, Toyota, Lexus, Ford, etc.









Applicable Batteries:

NiMH, NiCd, Li-ion and lead acid batteries (mind the capacity within 30AH).

Modular Design


The modular design enables flexible combinations, allowing multiple devices to be integrated into a testing cabinet for efficient and rapid completion of testing and maintenance tasks for the entire battery pack.


Basic Functions

► Charge
► Discharge
► Automatic Charge/Discharge Cycle
► DC Internal Resistance Measurement
► Capacity Grading Matching
► Data Analysis and Comparison
► Test Report Exporting
► Temperature Monitoring & Alarm

Features

• Each channel is equipped with a dedicated processor to ensure perfect levels of capacity calculation, timing, voltage and current control.
• All channels are tested in isolation, allowing direct testing of the cells within the battery pack.
• Independent heat source channel with temperature controlled speed control fan.
• LED indicators for operating status, test status, matching status, alarm status.
• Fully compatible with lead acid batteries, lithium batteries, NiMH, NiCd batteries, etc.
• Computer and device online testing, parameter setting and test results are uniquely rich.
• Work steps with constant current discharge, constant power discharge, constant resistance discharge, constant current charge, constant voltage charge, constant current and constant voltage charge, internal resistance test, idle, etc.
• Work steps automatically switching.
• Charge and discharge parameters can be customized.
• Test results can be matched against custom criteria and can be identified on the device.
• Data recording function during the test.
• Data reporting function.
• It has 4 Y-axes (voltage, current, capacity, temperature) and a time X-axis curve drawing ability.
• Customized test status bar colour for easy viewing of all devices when testing larger quantities.
• Built-in intelligent battery temperature management system to monitor battery temperature in real time and automatically manage the charging process by setting temperature parameters.
• The battery temperature alarm function enhances security in testing.


Technical Specification

    • Input Power Supply: AC 200V-245V@50Hz/60Hz 10A
    • Channel Number: 8
    • High Voltage Insulation Between Channel: AC1000V/2min Normal
    • Channel Control Mode: Independent control
    • Host Computer Communication Methods: based on TCP/IP protocol
    • Communication Port: LAN
    • Test Report Output Method: EXCEL
    • Server Disk Configuration: >100GB
    • Server Operation System: WINDOWS XP or above system with LAN port configuration
    • Operation Ambient Temperature: 0 ºC - 40 ºC
    • Single Channel Technical Parameters

          -Charging Constant Voltage Range: 1-20V adjustable
          -Discharging Cut-off Voltage Range: 1-20V adjustable
          -Voltage Tolerance: ± 0.02 V
          -Charging Current: 0.05 A-10 A Adjustable
          -Discharging Current: 0.05 A-10 A Adjustable
          -Current Tolerance: ± 0.02 A
          -Max. Output Power (Single Channel): 200W
          -Charge Modes: CC, CV, CC & CV
          -Charge Cut-off Conditions: Voltage, Current, Time, Capacity,-△V, Temp, Temp Rise Rate
          -Discharge Modes: CC, CP, CR
          -Discharge Cut-off Conditions: Voltage, Current, Time, Capacity
          -Data Recording Conditions: time interval, voltage interval, current interval
          -Cycle Index: 1-240 times

   • Product Size: L 635 * W 375 * H 205 mm
   • Weight: 24 KG

Product Display


Product Illustrations

Standard Accessories

    Testing cable with alligator clips and temp sensor (length: 1.1m)----------8PCS
    LAN cable---------------------------------------------------------------------------------------1PC
     Power cord------------------------------------------------------------------------------------1PC

* Testing cable length is customizable upon request
* Power cord is customized upon request

Packing Information

    Packing Rate: 1PC/CTN
    CTN Size.......:  75*51*33CM
    G.W/N.W......:  26KG/24KG

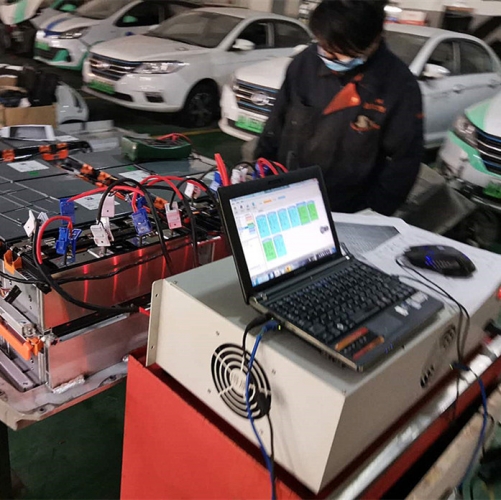

Application Cases:





Software Interfaces


Main Interfaces


List Display


Work Step Setting


Match Conditions Setting


Single Channel Data Analysis


Multiple Channel Data Analysis and Comparison


Test Data Exporting



Device Connection Diagram
